Propalock Components and Assembly Instructions:

Propalock, the innovative solution for enhancing the safety and stability of telescopic steel props, comprises several essential components designed for seamless integration.

In this section, we explore the various facets of Propalock, presenting different views of its components and providing comprehensive assembly instructions. From the core locking mechanism to its customized collar, Propalock’s design ensures a secure and dependable system for temporary support, aligning with the highest safety standards in construction.

Propalock Components

Component Title

Component Title

Short description about the component.

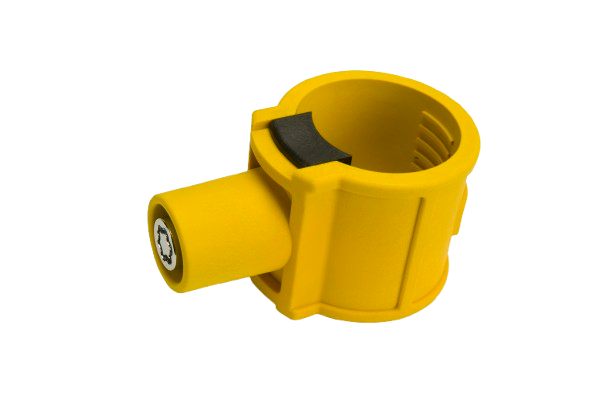

Propalock collar

Propalock Showing the coded pattern bolt and anti-tamper shroud

Propalock showing the sliding locking jaw unlocked

Propalock showing the sliding locking jaw in its locked position

Propalock showing the coded pattern bolt and anti-tamper shroud and locking jaw unlocked

Propalock showing the coded pattern bolt and anti-tamper shroud and locking jaw locked

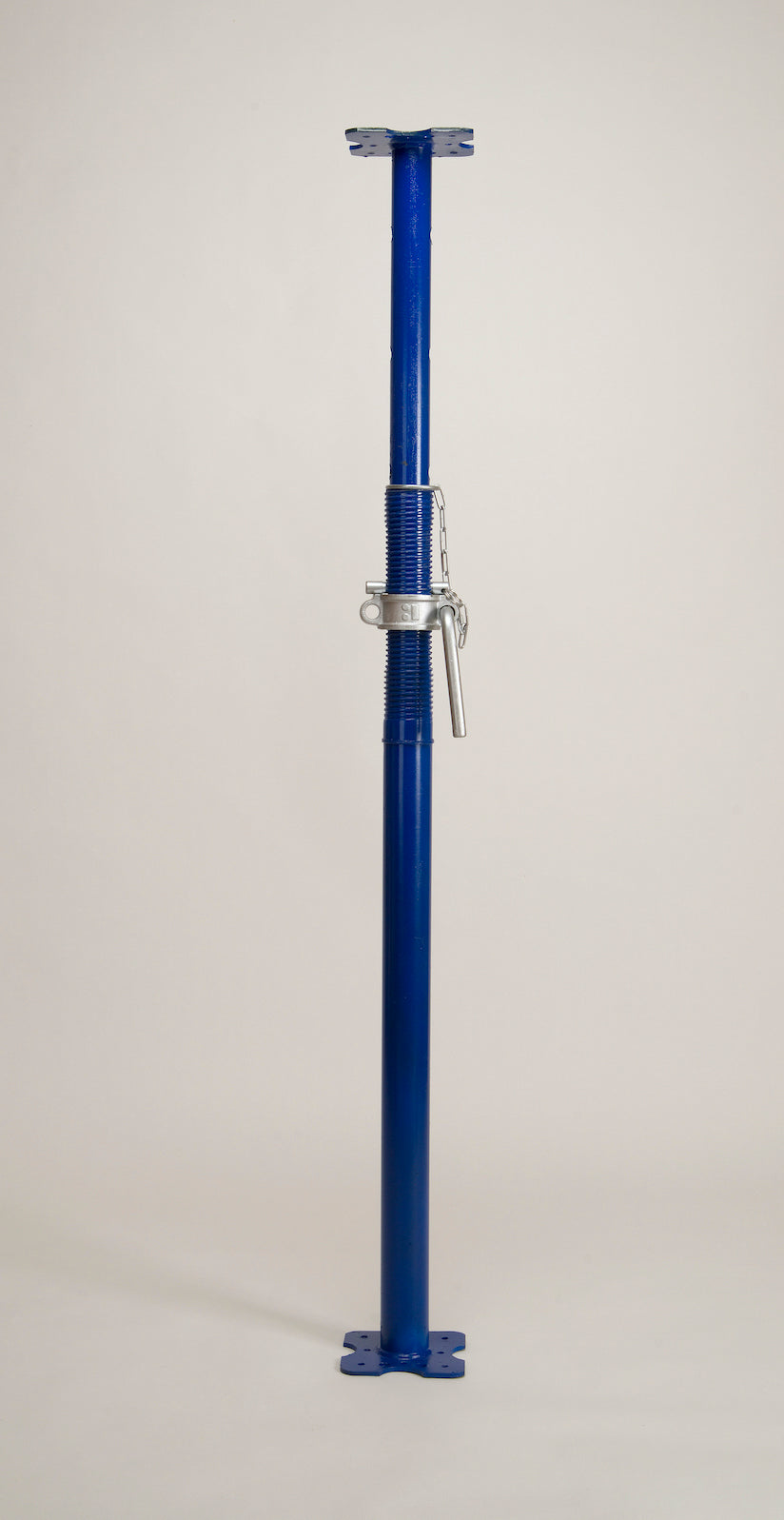

Propalock in operating position below collar nut of steel prop

Reverse view of Propalock in operating position below the collar nut of steel prop

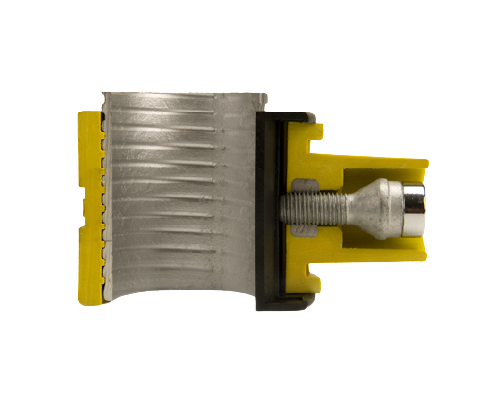

Cross-Section view of Propalock fitted to Steel Prop

Unique coded bolt and key allocated to individual, contractor, contract or phase

download.svg__PID:aea45f9d-a82a-4d74-acee-0252f9545eb8

Propalock has been designed to fit adjustable telescopic steel props manufactured to comply with British Standards BS 4074: 1982 and BS EN: 1065:1999.

Asset-16.svg__PID:941bd526-c9cb-4d9b-89ff-275731e2ae2b

Propalock has 7mm tolerance to accommodate fitting and minor variations in steel prop diameter that may be the result of normal wear and tear, corrosion or build-up of surface finish such as overpainting.

Asset-17.svg__PID:4cb90233-7aed-46d8-8fff-fc2f18e0a243

Propalock is fitted to the lower overtube of the steel prop.

Asset-20.svg__PID:12626d88-4b04-4891-8ee0-e469a3181407

The diameter of the lower outer tube is 60mm, the circumference is 189mm.

Asset-18.svg__PID:02337aed-86d8-4fff-bc2f-18e0a243c979

Propalock uses a fine-pitch threaded bolt with a unique coded head.

Asset-21.svg__PID:6d884b04-b891-4ee0-a469-a3181407d599

Propalocksoperating diameter range is 64mm when open and 57mm closed.
